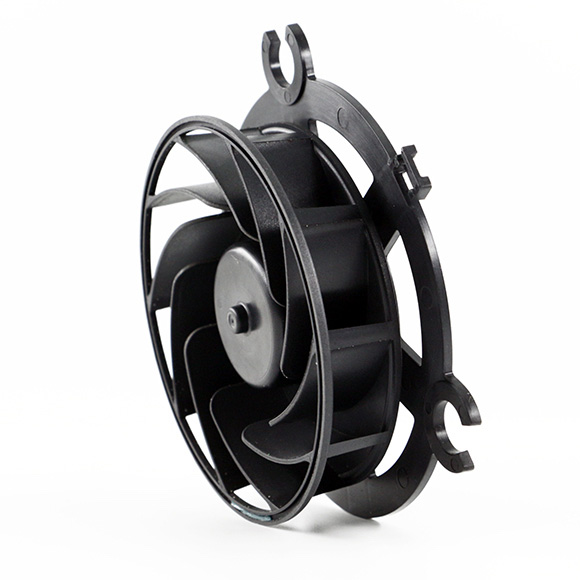

  • Centrifugal Fans 10030 3
  • Centrifugal Fans 10030 2
  • Centrifugal Fans 10030 1
  • Centrifugal Fans 10030 3

100x100x30mm

General Specifications

  • Material……Frame:Plastic(Flammability:UL94V-0),Impeller:Plastic(Flammability:UL94V-0)
  • Expected life……(ball bearing 50000 hours, sleeve bearing 30000 hours) continuous running under the condition of 40℃ , 15~65 % humidity
  • Motor protection function……Looked rotor burnout protection, Reverse polarity protection
  • Dielectric strength……50/60Hz,500VAC,for 1minute
  • Insulation resistance……≥ 10 MΩ ,

(Through applying 500VDC between impeller hub center and lead wire (+) )

  • Sound pressure level(SPL)……At 1m away from the air inlet
  • Storage temperature……-30 to +70°C(Non-condensing)
  • Lead Wire…… +Red -Black Yellow(sensor)Brown (Control)

(For models without PWM control function,there is no speed control wiring.)

  • Mass……126.83g
GET A QUOTE

Related Cooling Fans

  • Specification
Item No. Operating
Voltage
   Maximum
Air Flow
       Maximum
Air Pressure
Rotational
Speed
Rate
Current
Input
Power
Noise
(V) (CMM) (CFM) (mmAq) (inchAq) (RPM) (A) (W) dB(A)
CHA10012BL-A30B 12 0.44 15.65 1.63 0.06 1215 0.10 1.20 19.3
CHA10012BM-A30B 12 0.50 17.65 2.07 0.08 1368 0.12 1.44 21.8
CHA10012BH-A30B 12 0.61 21.47 3.08 0.12 1668 0.16 1.92 26.1
CHA10012BX-A30B 12 0.68 23.96 3.83 0.15 1860 0.20 2.39 28.5
CHA10024BL-A30B 24 0.44 15.65 1.63 0.06 1215 0.12 2.88 19.3
CHA10024BM-A30B 24 0.50 17.65 2.07 0.08 1368 0.15 3.60 21.8
CHA10024BH-A30B 24 0.61 21.47 3.08 0.12 1668 0.19 4.56 26.1
CHA10024BX-A30B 24 0.68 23.96 3.83 0.15 1860 0.24 5.76 28.5
